$33.98

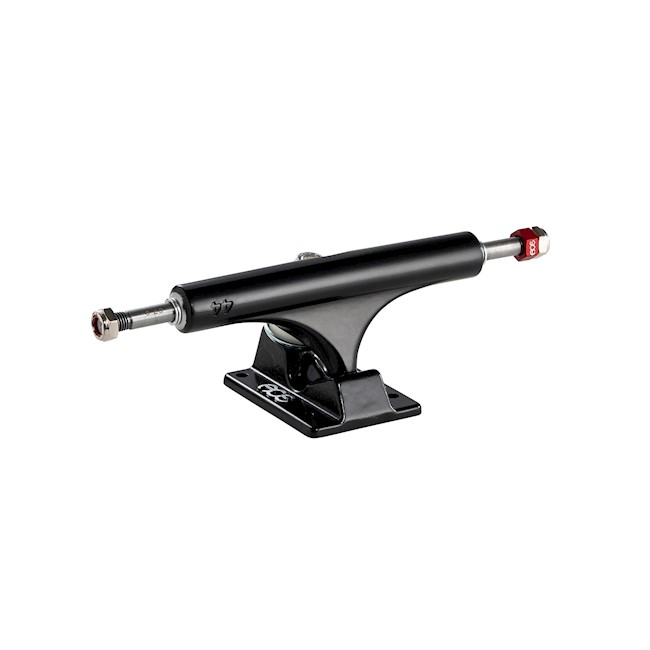

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market.
The Ace AF1 is the strongest and longest lasting cast truck available. These trucks are manufactured using our proprietary casting process, which produces a stronger and tighter grain structure within the aluminum. AF1 come equipped with high quality suspension including hand-poured pivot cups and break in bushings, making these trucks ready to rip in no time at all. Each truck comes standard with re-threading axle nuts ensuring your axle never strips. As a bonus, an additional red re-threader die is included, keep it on your key chain and you’ll be a hero to a friend in need. Tested and approved by our team of Ace Pilots, AF1 is the gold-standard in cast truck technology, griding through burly ledges and pool coping has never felt so good!
Size 22: for 7.75″ decks
Size 44: for 8.0″ and 8.25″ decks
Size 55: for 8.5″ decks
The Ace AF1, tomorrow’s technology today!
• Axle width: 7.75” (196.85mm)
• Hanger width: 5.2” (132mm)
• Truck height: 2.1” (53mm)
• Fits boards: 7.5” – 8.0”
• Weight: 13 oz
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts – no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
| SIZE | AXLE WIDTH | BOARD FIT | HANGER WIDTH | HEIGHT | WEIGHT |
|---|---|---|---|---|---|
| 22 | 7.75″ | 7.25″ – 8.00″ | 5.2″ (132mm) | 2.1″ (53mm) | 12.925 oz (366g) |
| 44 | 8.25″ | 8.25″ – 8.50″ | 5.6″ (143mm) | 2.1″ (53mm) | 13.666 oz (387g) |
| 55 | 8.50″ | 8.50″ – 8.75″ | 5.8″ (149mm) | 2.1″ (53mm) | 13.981 oz (396g) |
